Explore Ugo’s creative journey behind the making of The Veiled Christ, where 3D art, digital sculpting, and innovative techniques converge to bring this masterpiece to life.
INTRODUCTION
My name is Ugo, and I’m a 3D artist living in Empoli, a city near Florence. Originally from the Naples hinterland, I spent part of my life in Rome, where I earned my degree from the Academy of Fine Arts. After graduation, I moved to Stafford, UK, to pursue an MSc in 3D Modeling for Video Games at Staffordshire University.
Upon returning to Italy, I was hired by a gold manufacturing company in Arezzo, which brought me to Tuscany. At the time, gold manufacturing companies had begun exploring digital sculpting due to the introduction of wax 3D printing machines. I spent nearly four years creating jewelry before deciding to move to Florence and pursue freelance work. Since then, I have focused primarily on marble projects, collaborating with marble manufacturing companies that use CNC robots for stone carving.
I lived in Florence for five years, during which I made a pivotal decision in my professional journey: switching from 3ds Max to Blender.
Now, I live in Empoli, where my work primarily revolves around marble projects. I am also involved in forensic reconstructions from skulls and conduct personal research on artistic anatomy.
UME 3D Art is the name of my professional practice. “UME” represents the initials of my full name, Ugo Maria Esposito.
3D art is not a singular, defined discipline; it spans a vast range of applications across various fields, including art, craftsmanship, architecture, and science. In my view, 3D art represents a unique space where creativity and science converge.
In this sense, being a 3D artist feels like participating in a modern Renaissance, where technology and artistry intertwine to shape new possibilities.
INSPIRATION
The Veiled Christ is an artwork commissioned by a marble company to be crafted in full-size marble. It is inspired by the famous sculpture of the same name by Giuseppe Sanmartino, completed in 1753 and located in the Cappella San Severo in Naples, Italy. When I accepted the project, I didn’t have a clear idea of how to approach it, but I was confident that, with the strategic use of my 3D software tools, I would find a way. My biggest concern was the veil—and as it turned out, I was right. You’ll understand why.
PROCESS
Before explaining how I created The Veiled Christ, it’s important to note that the process involved the use of several software tools: Blender, ZBrush, 3D Coat, and Marvelous Designer.
For my professional needs, this combination is ideal, as I use each program in my workflow for specific purposes:
- Blender for setting up the project base and rendering
- ZBrush for sculpting
- 3D Coat for sculpting fine details, retopologizing, cleaning high-density meshes, and performing boolean operations between high-density meshes
- Marvelous Designer for generating complex cloth simulations
To keep things clear, I’ve focused on the overall process, explaining what was done with each software in chronological order. I’ve grouped all the steps into five main phases, as illustrated in picture No. 1:
- Blocking
- Modeling and Sculpting
- Building the Veil
- Refining the Veil
- Merging, Cleaning, and Retopologizing
References
Of course, the very first step was gathering references. For this project, I used photos and videos of the original statue available online.
Fig. 2. Example of photo references of the original statue.
Blocking
The blocking phase is where the base elements of the mattress, pillows, and body are created, as well as the positioning of the spine crown and the tools of passion. All of this takes place within Blender.
The bases for the mattress and pillows are modeled using basic polygonal techniques, while the body is constructed using my anatomical mannequin, Embryo.
Embryo consists of a collection of simplified anatomical elements that are linked together, allowing for easy transformation by moving, rotating, and scaling from key points. If you’re interested in learning more about Embryo, you can find additional information on my LinkedIn article called EMBRYO Anatomy Mannequin.
Using Embryo, I established the proportions and pose of Jesus, creating the foundation for the sculpture.
Fig. 3. Embryo posed for Jesus’s body.
Modeling and Sculpting
The modeling and sculpting phase is where most of the project, except for the veil, takes shape.
The instruments of passion were created entirely in Blender using polygonal modeling tools (Fig. 4), while the spine crown was designed with curves, converted into polygons, and then sculpted in ZBrush (Fig. 5).
Fig. 4. Pincers and nails’ wireframes.
Fig. 5. Spine crown from curves to mesh sculpture.
The tops of the tassels were modeled polygonally, while the fibers were generated in Blender using the hair tool (Fig. 6). These fibers were then exported to ZBrush for further adjustments and refinements (Fig. 7).
Fig. 6. Tassel fibers made with the hair tool.
Fig. 7. Tassel fibers merged in one mesh.
The mannequin was also sent to ZBrush, where it was merged into a single mesh and sculpted. A significant focus of this process was the study and detailing of veins. This began in Blender, where curves were drawn directly onto the final body sculpture (Fig. 8). After being converted into meshes, the veins were merged with the body sculpture in ZBrush for additional refinement.
Fig. 8. Study of the veins.
Building the veil
With everything set, it was time to begin work on the veil.
Initially, I considered using a technique I had developed over the years for all my organic models, which I call the “Super Block Out.” This method involves blocking out a shape from the overall form to the finest details by adding 3D objects over existing ones using the IMM Brush in ZBrush.
The IMM Brush is a versatile tool that allows for dragging and dropping meshes directly onto a surface. An example of the Super Block Out technique can be seen in Fig. 9, where the folds of a dress on a female figure are composed of numerous objects assembled to create the desired drapery effect.
Fig. 9. Example of a classic dress artwork made with the Super Block Out technique.
This technique is highly efficient for classic drapery artwork, which made me consider it as an option for the veil of The Veiled Christ. However, as soon as I began applying the Super Block Out technique, it became evident that the complexity of the veil would make this approach incredibly time-consuming.
Realizing this, I shifted my strategy to Marvelous Designer. Using Marvelous Designer, I could drape a large sheet over the body and let the simulation handle much of the work. While this seemed promising at first, it quickly became apparent that this approach was also not feasible. The folds in the original artwork flow in multiple directions (Fig. 10), and even though Marvelous Designer allows real-time adjustments, achieving the same intricate look as the original piece from a single sheet proved difficult.
Fig. 10. The veil’s flow direction.
Additionally, simulating a high-density mesh over the entire body posed its own challenges. High-density meshes lead to slow simulations, which reduce control and efficiency.
At this point, I decided to divide the veil into smaller sections. By focusing on one portion of the veil at a time, I was finally able to replicate the intricate flow of the original statue with precision. Using multiple meshes to compose the entire veil, I achieved the aesthetic result I was aiming for. However, further refinement was still needed.
Fig. 11. The veil’s single portion.
Fig. 12. The veil’s portions work in progress.
Fig. 13. The veil’s portions, assembly completed.
Refining the veil
The fourth phase took place back in ZBrush, where I worked with the newly created meshes of the veil, placing them over the rest of the model. At this stage, I began refining the flow to better match the original sculpture’s intricate design.
I wasn’t hesitant to adjust the veil objects, as the body beneath served as a guide to replace any close-fitting areas I modified. In Fig. 14, the body is highlighted in pink, clearly showing the fitted sections of the veil.
Fig. 14. Marked body underneath the veil.
Using the Super Block Out technique, I added further complexity and refinement to the veil. Fig. 15 illustrates the additional elements created with this technique, while Fig. 16 distinguishes the different portions of the veil by color, making the segmentation clear.
Fig. 15. Material added with the Super Block Out technique.
Fig. 16. The veil’s objects, divided by colors.
Merging, Cleaning, and Retopologizing
The fifth and final phase involved using 3D Coat. Before transitioning to 3D Coat, I needed to add thickness to the veil meshes (since they were initially open meshes) and fill all the gaps between the veil and body objects (see Fig. 17).
Fig. 17. The veil and body blocks merged.
3D Coat is a powerful 3D software with excellent voxel sculpting capabilities. When using voxels, the mesh must first be converted into a voxel object. This transformation changes the model from being surface-based (defined by faces) to a volumetric representation composed of digital particles known as voxels. This conversion gives the model a solid, full-body structure, akin to a real-life wax model.
The voxel transformation unlocks new possibilities for editing, allowing advanced brush and boolean operations. In 3D Coat, I merged all the veil and body objects into a single model and used voxel brushes to remove undercuts, fill gaps, and clean up the surface. This process prepared the object for retopology.
Retopology, or retopo, is crucial for two main reasons. First, it reduces the model’s polycount, making it lightweight and efficient for rendering. Second, when done correctly, it ensures a smoother surface during subdivision. For these reasons, the mattress, pillows, and veil were carefully retopologized by hand, capturing every detail with the appropriate edge flow (Fig. 18, Fig. 19, and Fig. 20).
Fig. 18. The veil and body block retopo.
Fig. 19. Mattress retopo.
Fig. 20. Pillow retopo.
Fig. 21 shows the body and veil model before and after these steps.
Fig. 21. (To the left) the veil and body before cleaning, (to the right) the same after cleaning and retopo.
As for the other elements, the instruments of passion and the tassel tops were already created with polygonal modeling and didn’t require retopo. However, for the spine crown and the tassel bottoms, I opted for an automatic remesh.

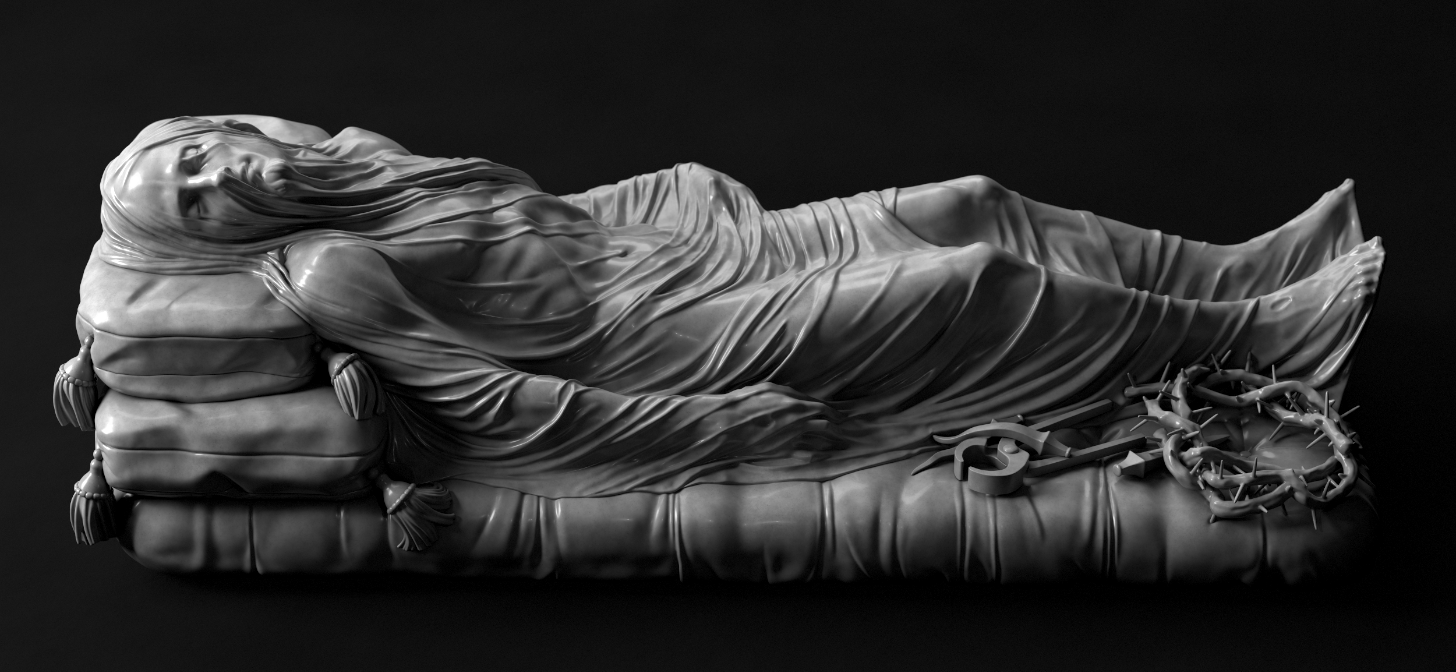

RENDER: Cristo Velato
More detailed views:
Wireframe:
Link to video:
Final Thoughts
This is how I created my Veiled Christ. The remaining tasks, such as lighting and material setup in Blender, fall outside the scope of this article and are subjects for another time.
In conclusion, I’m very pleased with the final outcome of this model, though I feel I could have refined the veil further by enhancing its contrast and volume. As it stands, the veil has a “fluid” appearance, which is a beautiful effect but differs from the original’s more rigid structure.
Ultimately, this project has been more of a research endeavor than a performance piece. I’ve learned a great deal from this experience, and that’s what truly matters. My hope is that by reading this article, you can also benefit from my experiences and insights. For further exploration of my work, feel free to visit my social media pages.
About the Artist
Ugo Maria Esposito is a 3D artist specializing in digital sculpting, 3D modeling, and rendering. Through his practice, UME 3D Art, he blends creativity and science, exploring new possibilities in art and design.
